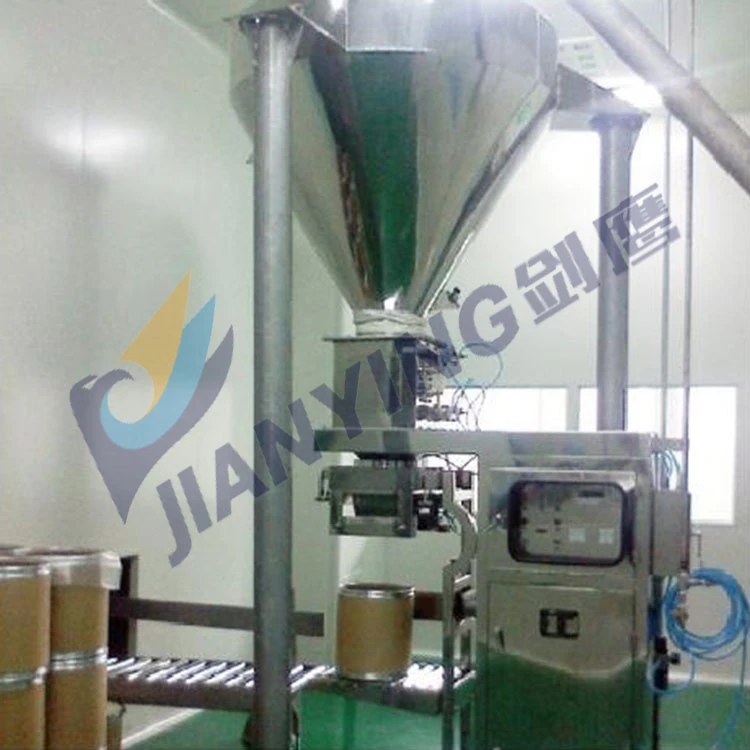

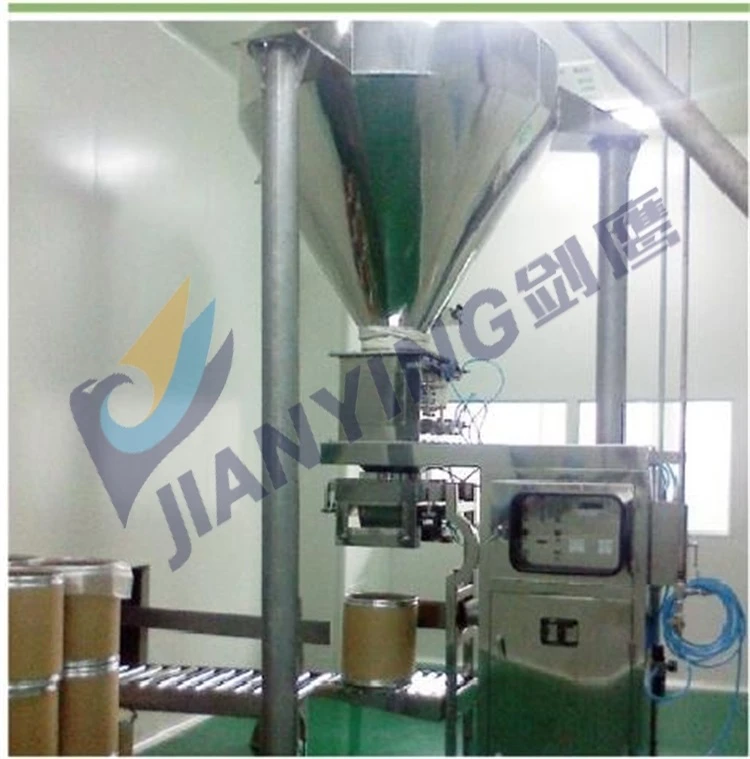

The DCS/50-A4 gross gravity feeding bag packing machine is a high-efficiency, high-precision automatic packaging system independently developed and manufactured by Wuxi Jianying Intelligent Equipment Co., Ltd. As a professional Bag Packing Machine, it adopts gravity feeding principle, which realizes automatic weighing, feeding, bagging and sealing of materials through intelligent control system, completely replacing manual packaging, greatly improving production efficiency and reducing labor costs. With 33 years of experience in the automatic packaging industry, Wuxi Jianying has continuously optimized the structure and performance of the gravity Bag Packing Machine, making it have the characteristics of stable operation, high measurement accuracy and strong adaptability, and it is widely used in various industries such as chemical industry, food and new energy. The equipment not only meets the domestic production needs, but also is exported to Southeast Asia, the Middle East and other regions, winning wide recognition from global customers.
Technical Specifications
|
Model |
DCS-50/A4 |
|
Range |
20~50 kg |
|
Speed |
200~300 Bag/Hour |
|
Accuracy |
±0.2% |
|
Power Source |
AC380/220/50Hz |
|
Air Pressure |
0.4~0.6 MPa |
|
Air Consumption |
0.3m³/min |
|
Bag |
Plastic bags, paper bags, cardboard boxes, barrels and other forms open pockets |
|
Feeding Method |
Gravity type |
Feature And Application
The gravity feeding bag packing machine employs high-precision sensors and self-developed dynamic compensation technology, achieving weighing accuracy within ±0.2% – exceeding industry averages – to ensure consistent weight distribution per bag. As a high-precision bag packaging machine, it effectively addresses the challenges associated with manual weighing inaccuracies. Its pneumatic automatic bag clamping and unloading system requires only manual bag insertion, offering high automation efficiency and labor savings. Core components utilize imported brands, ensuring a service life of over 10 years with an average fault-free operation time exceeding 8,000 hours. The modular design enables rapid model upgrades, reducing product transition time costs.
Equipped with a touchscreen control system supporting automatic parameter settings, fault alarms, and data statistics, the machine requires minimal operator training. Suitable for packaging various materials including granules and tablets, it allows customized production based on material characteristics and customer requirements. Featuring dust removal systems, it meets stringent environmental standards while operating safely in hazardous environments with flammable/explosive materials or high-dust conditions. The optimized feeding mechanism minimizes material waste, achieving 40% lower energy consumption compared to industry peers, while its enclosed design significantly reduces dust pollution.
