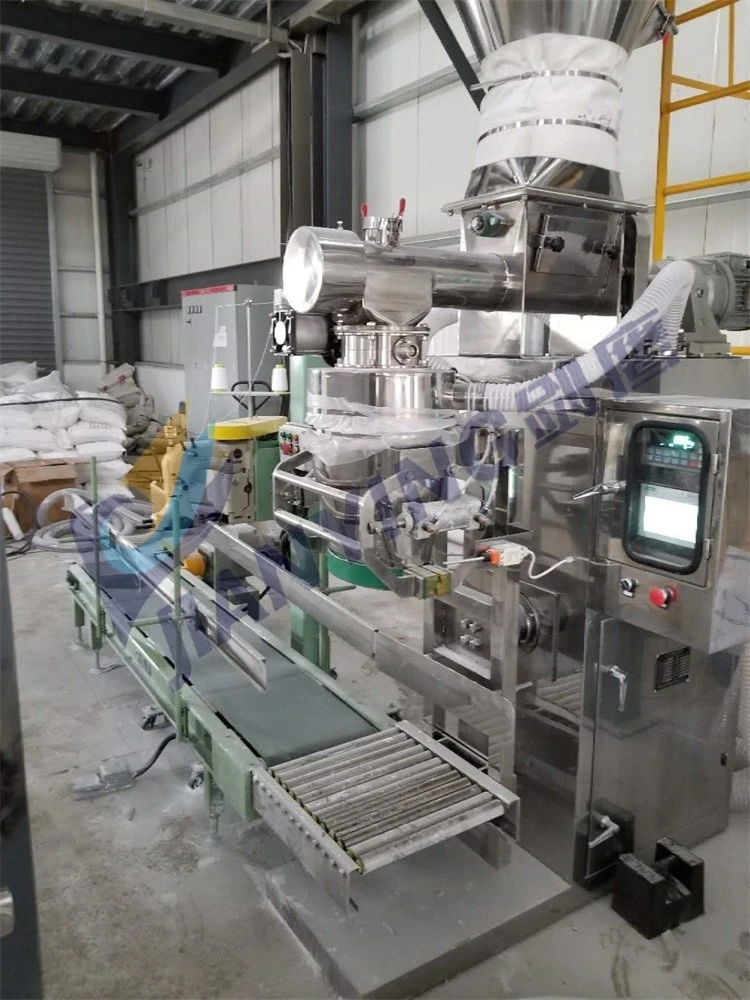

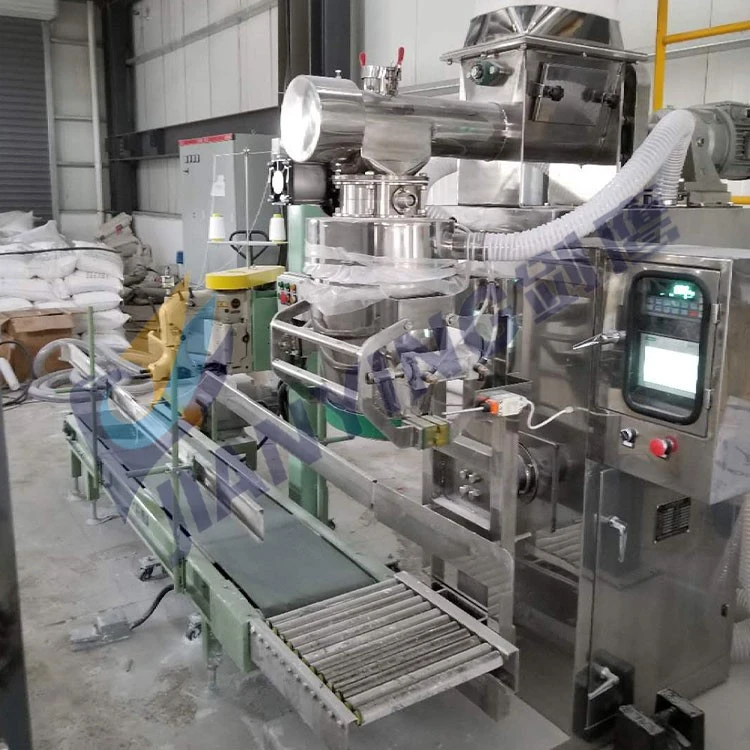

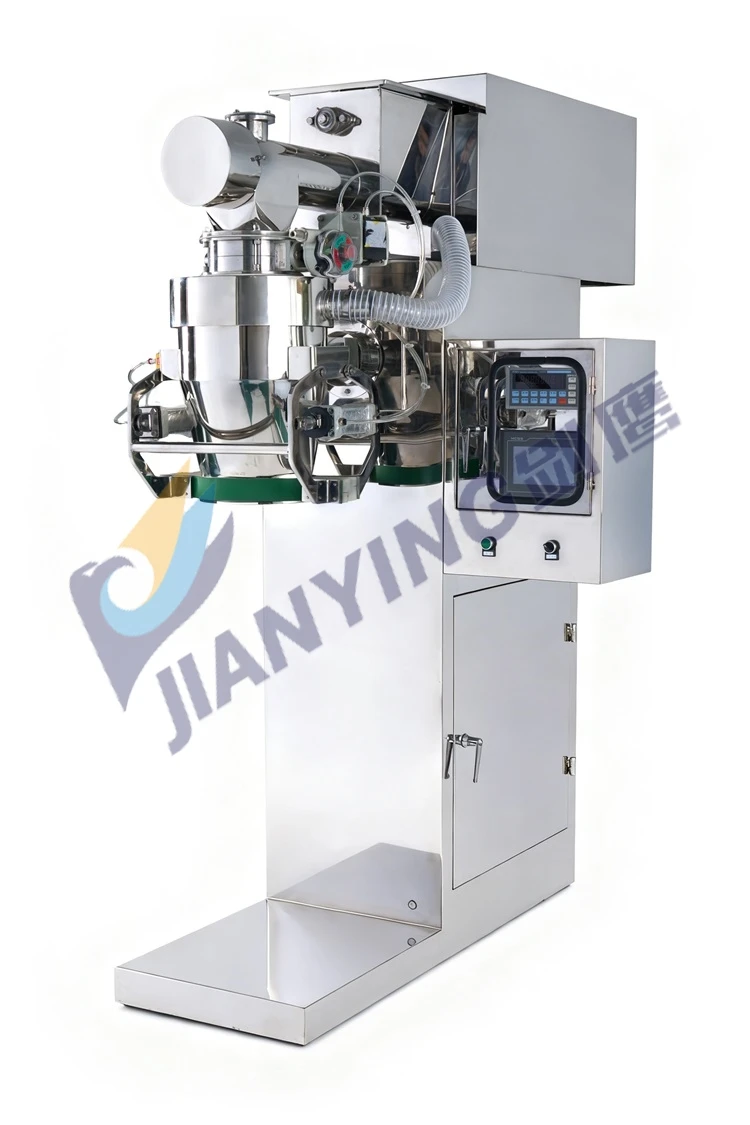

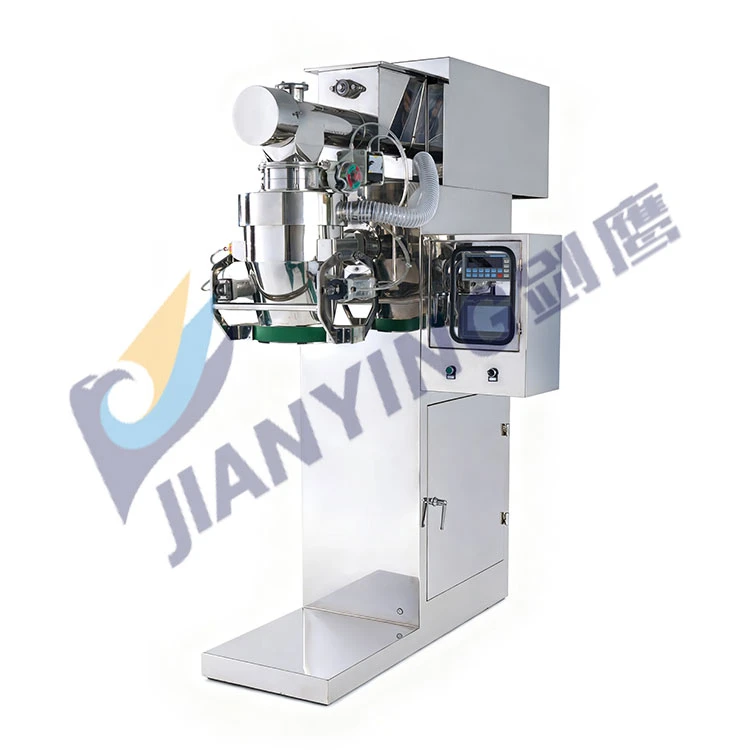

The DCS/50-A5d is a Horizontal Single Helix Feed Bag Packaging Machine manufactured by Wuxi Jianying, specifically designed for conventional powders and fine particulate materials with excellent flowability and low tendency to clog. It features quantitative packaging capacity of 20–50 kg per open bag. The equipment employs a simplified single-screw forced feeding mechanism, eliminating complex redundant components, and offers key advantages including a straightforward structure, stable operation, high cost-effectiveness, and low failure rate. It is the preferred model for standardized mass production of general-purpose powders, widely applicable in industries such as pesticides, chemicals, and metallurgy, and can be used standalone or integrated with conveying and sealing equipment to form a simple automated packaging line. Suitable materials include manganese dioxide, resins, zinc oxide, potassium salts, polyaspartic acid, stainless steel powder, powdered flavors, and other conventional powder materials characterized by good flowability, low clogging tendency, and minimal adhesion.
Technical Specifications
|
Model |
DCS-50/A5d |
|
Range |
20~50 kg |
|
Speed |
100~200 Bag/Hour |
|
Accuracy |
±0.2% |
|
Power Source |
AC380/220/50Hz |
|
Air Pressure |
0.4~0.6 MPa |
|
Air Consumption |
0.3m³/min |
|
Bag |
Plastic bags, paper bags, cardboard boxes, barrels and other forms open pockets |
|
Feeding method |
Horizontal single helix |
Feature And Application
* The horizontal single-screw feeding bag packaging machine features: stable feeding performance with universal applicability; a variable-frequency single-screw grading feeding system enabling intelligent speed switching between fast and slow modes; uniform and smooth material discharge without clogging or interruption; compatibility with most dry, flow-stable powder and granular materials; broad application scope, and strong interoperability.
* The device offers precise and stable weighing performance with minimal error, featuring a high-precision weighing sensor system that includes automatic zero-point tracking and differential compensation functions. It ensures excellent consistency in batch packaging weights, with dynamic measurement errors ≤±0.2%, fully meeting standard industrial packaging weighing requirements.
* The design features an extremely simple yet durable structure with an exceptionally low failure rate. The streamlined transmission mechanism incorporates fewer components and minimal wear, eliminating the complex failure risks associated with multi-screw configurations. This ensures stable and long-lasting operation, robust stability during continuous mass production, and a significant reduction in maintenance downtime.
* Featuring a sealed, dust-free design with an environmentally friendly and energy-efficient closed-system filling structure, the unit comes standard with a dedicated dust removal interface that connects to negative-pressure dust collection systems. This effectively controls workplace dust generation, minimizes material loss, ensures a clean workshop environment, and complies with environmental production standards.
* Intelligent and user-friendly operation with convenient maintenance: Featuring PLC + touchscreen smart control, it allows one-click parameter setting, adjustable weight, easy model switching, and includes built-in production statistics and self-diagnostic capabilities. The compact design occupies minimal space, while its modular structure facilitates disassembly, cleaning, and routine maintenance, making it easy for operators to use.
