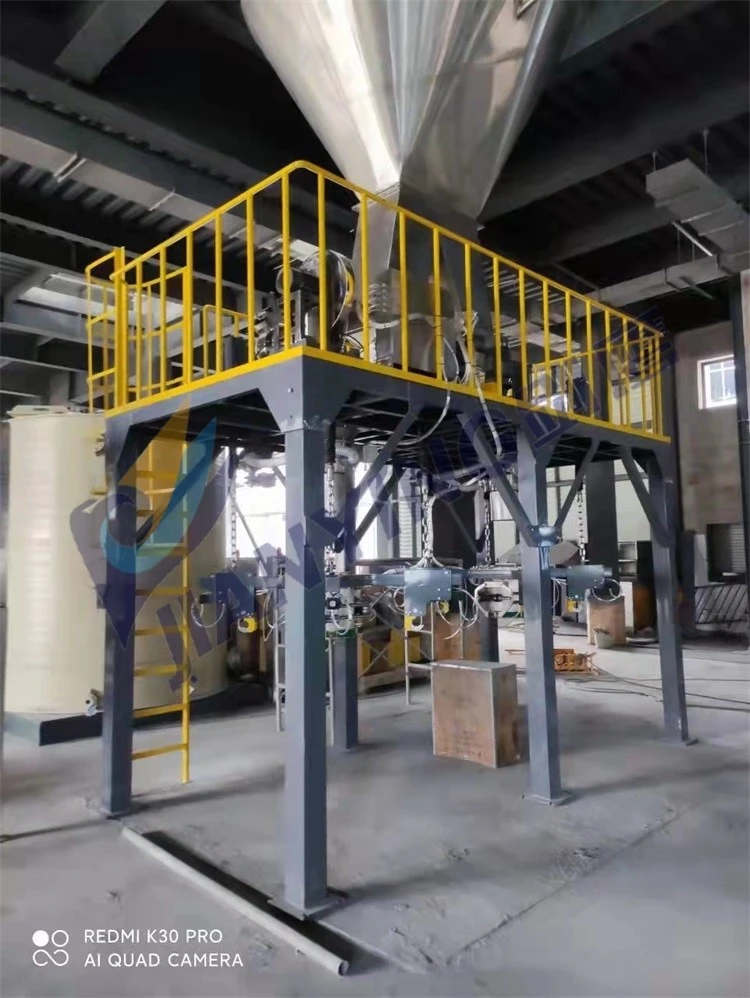

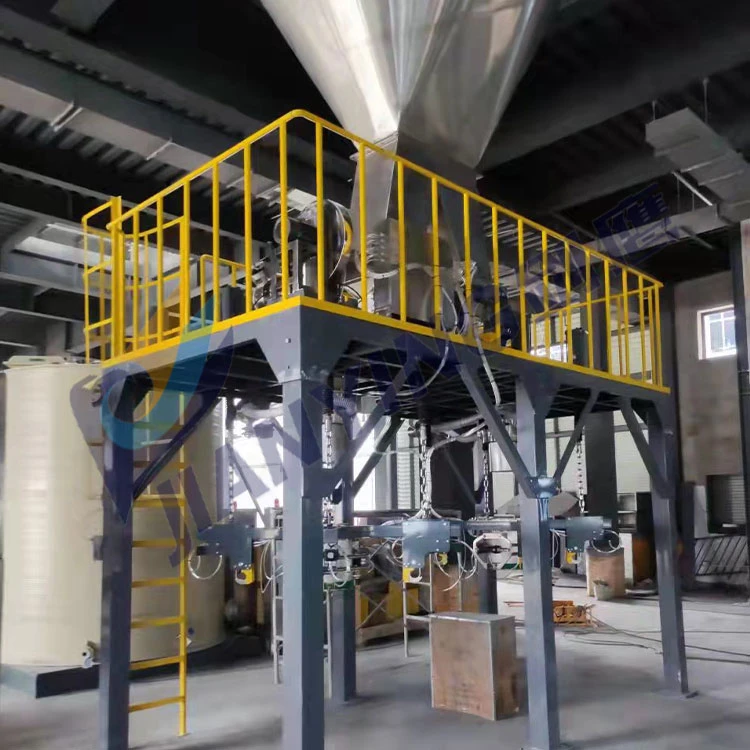

The DCS-1000/2 series Ton Bag Packing Machine is a high-precision semi-automatic filling system specifically designed for large bags weighing 500–1000 kg, suitable for handling various materials including granules, powders, and tablets. Widely adopted in industries such as new energy, chemicals, fertilizers, and food ingredients, this equipment features a mature design, stable operation, and precise measurement capabilities. It can operate independently or be integrated with conveying and palletizing systems to form fully automated packaging lines, making it the preferred choice for large-scale quantitative packaging applications in medium-to-large enterprises.
Technical Specifications
|
Model |
DCS-1000/2 |
|
Range |
500~1000kg |
|
Speed |
25 Bag/Hour |
|
Accuracy |
±0.2% |
|
Power Source |
AC380/220/50Hz |
|
Air Pressure |
0.4~0.6 MPa |
|
Air Consumption |
0.3m³/min |
|
Bag |
PP woven material (PE or PE liner film lamination),four or two straps |
|
Feeding Method |
Gravity Type |
Feature And Application
The Wuxi Jianying Tonnage Bag DCS-1000/2 Ton Bag Packing Machine features precise weighing with stable measurement performance. It employs an upper weighing mechanism combined with high-precision load cells and an intelligent differential correction algorithm, ensuring exceptional weighing accuracy and minimal errors. The straight-drop feeding design guarantees reliable weighing precision, offers adjustable weight settings to prevent deviations from specified limits, and complies with corporate warehousing and manufacturing weighing standards.
Sealed and dustproof, environmentally friendly and dust-free, featuring a standard sealed pouch design with a dedicated dust removal port. The entire filling process is fully enclosed, effectively preventing dust leakage and completely eliminating powder dust pollution. Contact surfaces can be customized with stainless steel or anti-adhesion coatings, offering corrosion resistance, no residue, and easy cleaning. Each ton package is fully formed and flat, free from collapse or voids, significantly facilitating stacking, storage, and transportation while substantially reducing loading losses caused by material fluffiness.
Durable and easy to maintain, featuring a thickened overall frame and a modular split structure. The core pneumatic and electrical components are of reliable quality, with low failure rates and stable performance. The rational structural design facilitates simple disassembly and maintenance, resulting in low long-term maintenance costs, making it suitable for prolonged, continuous high-intensity production in factories.
Highly adaptable and customizable, it allows adjustment of features such as mixing and crushing chambers, explosion-proof configurations, and food-grade polishing according to material properties. It is suitable for various operating conditions including flammable/explosive environments and large-grained materials, demonstrating strong versatility.
