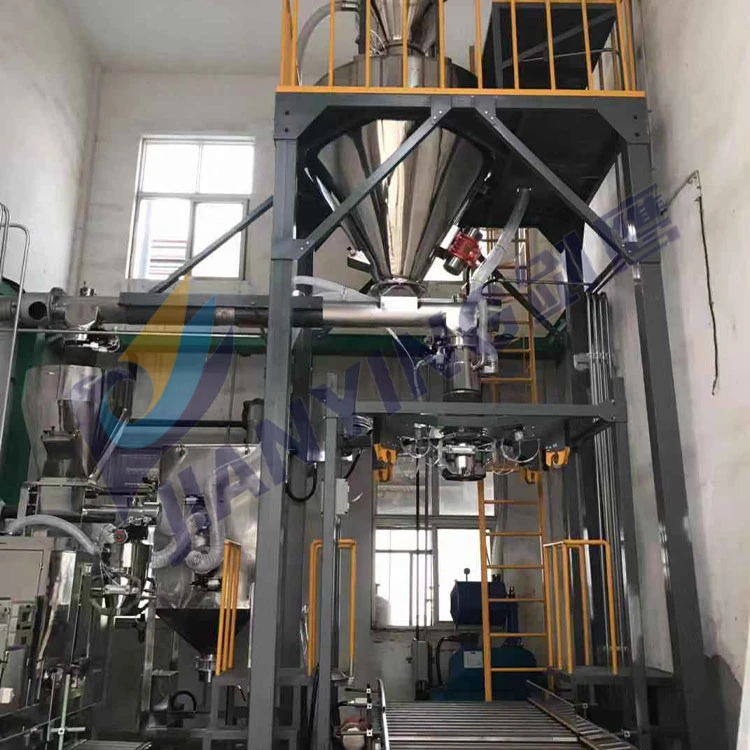

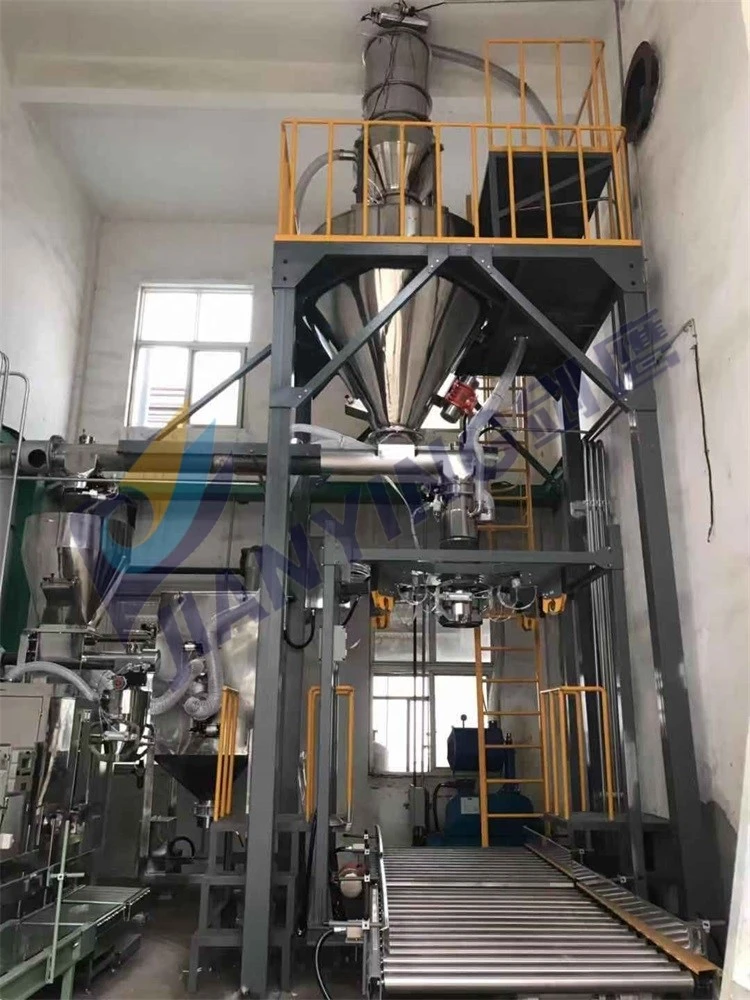

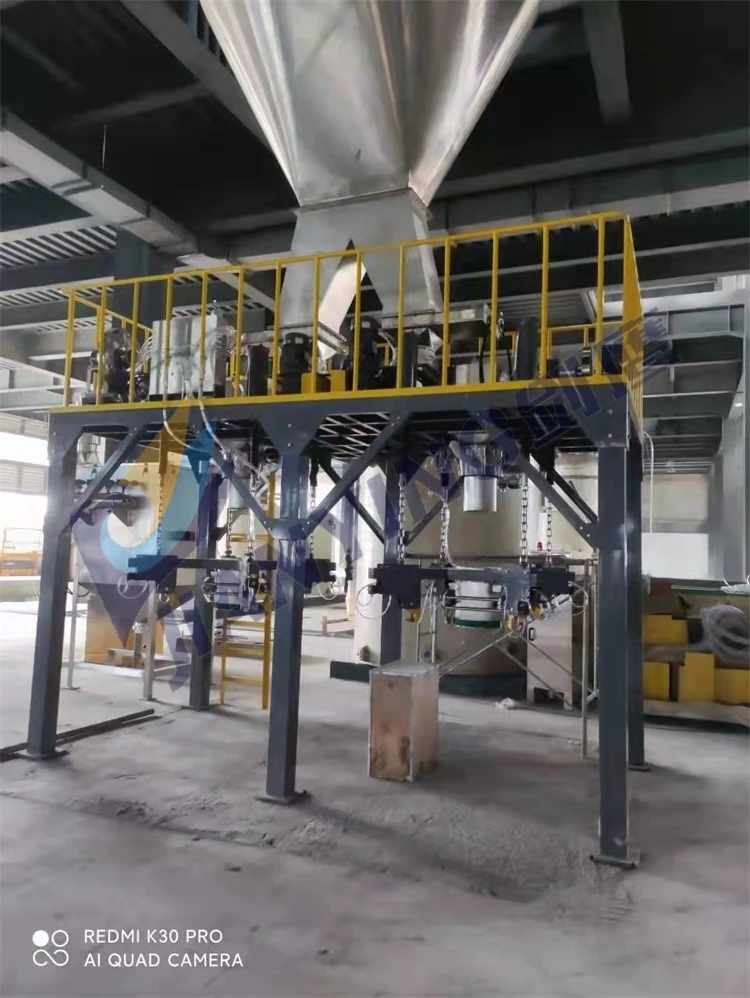

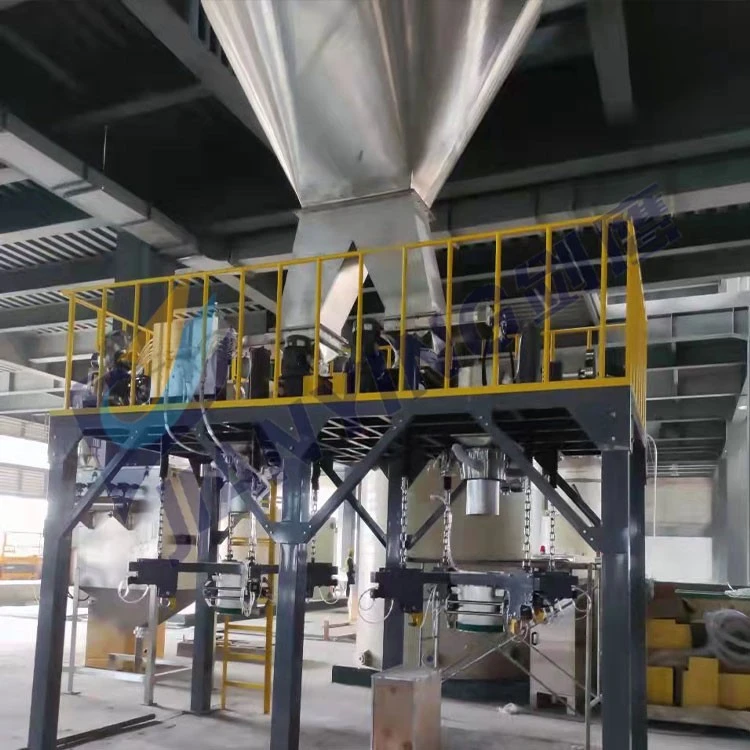

The DCS-1000 1 Ton Bag Filler launched by Wuxi Jianying covers the entire product series including models 1000/1, 1000-2, 1000-3, and 1000-6, specifically designed for standard 500–1000 kg ton bags. Compatible with industry-standard PP woven bags paired with PE inner bags or film-coated container bags, this equipment fully automates the entire powder material filling and weighing process, making it the go-to solution for standardized bulk packaging in chemical, pesticide, food, and new energy industries. The machines are categorized by feeding method: screw feed systems include DCS-1000/1, 1000/1s vertical screws, 1000/1d single screws, as well as DCS-1000/3, 1000/3s vertical screws, and 1000/3d single screws; gravity feed system is the DCS-1000-2 model; and vibration feed system is the DCS-1000-6 model. These units offer flexible application scenarios, capable of operating independently or being combined into complete automated packaging production lines.
Technical Specifications
|
Model |
DCS-1000/1 |
DCS-1000/2 |
DCS-1000/3 |
DCS-1000/6 |
|||
|
Range |
500~1000 kg |
||||||
|
Speed |
1 0 ~ 2 0 Bag/Hour |
25 Bag/Hour |
10~ 2 0 Bag/Hour |
8 Bag/Hour |
|||
|
Accuracy |
±0.2% |
||||||
|
Power Source |
AC380/220/50Hz |
||||||
|
Air Pressure |
0.4~0.6 MPa |
||||||
|
Air Consumption |
0.3m³/min |
||||||
|
Bag |
PP woven material (PE or PE liner film lamination),four or two straps |
||||||
|
Feeding Method |
Spiral feeding |
Gravity type |
Spiral feeding |
vibration type |
|||
Feature And Application
The DCS-1000 1 Ton Bag Filler is equipped with a digital intelligent weighing module, ensuring stable and reliable measurement performance with packaging weight errors strictly controlled within ±0.2%, significantly reducing material waste and meeting high-precision packaging requirements while consistently safeguarding corporate production efficiency.
The system supports material physical properties to provide modular feeding solutions: Gravity feeding – suitable for highly fluid granular materials such as urea, plastic particles, compound fertilizer, and calcium chloride; Double-helix sealed feeding – ideal for dust-prone powders like iron powder, calcium carbonate, activated carbon, and fine chemical powders, effectively preventing clogging and arching; Vibration-assisted feeding – designed for clumpy, viscous, or low-flow-rate materials. Contact surfaces can be constructed from carbon steel or 304/316L stainless steel, with anti-corrosion polishing treatment available for applications requiring resistance to acid/alkali corrosion or food hygiene requirements.
The entire unit is constructed from thickened industrial panels, featuring a robust structural design capable of sustained high-intensity production over extended periods. It is equipped with an intelligent control system that supports integration into the plant's central control network, enabling automatic aggregation of production output and real-time monitoring of equipment operational data. The system offers low operational complexity and facilitates straightforward daily maintenance and servicing.
