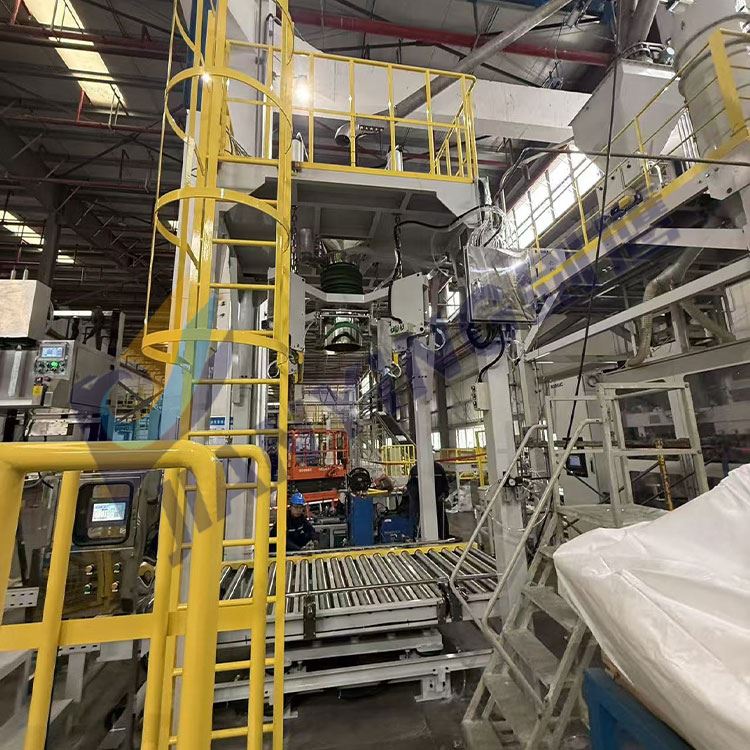

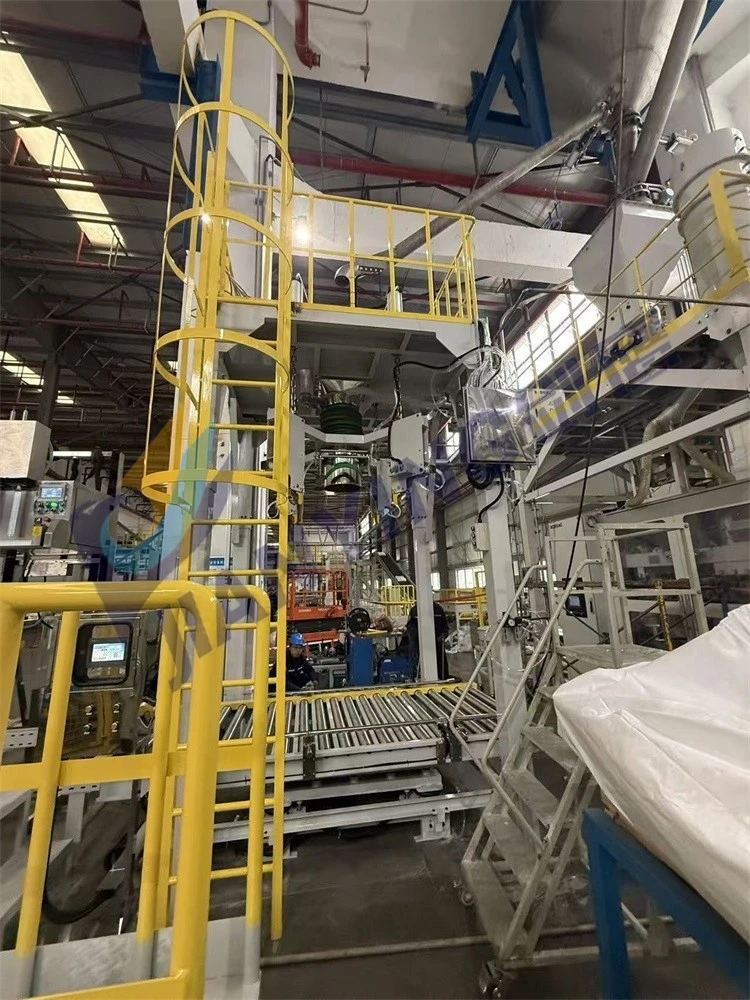

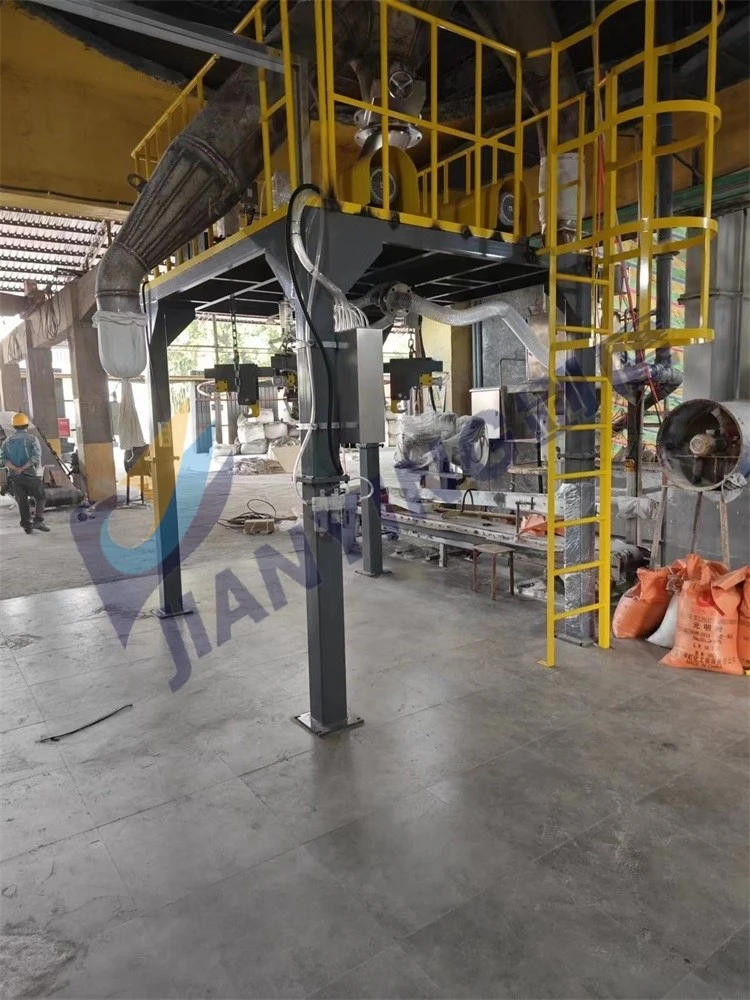

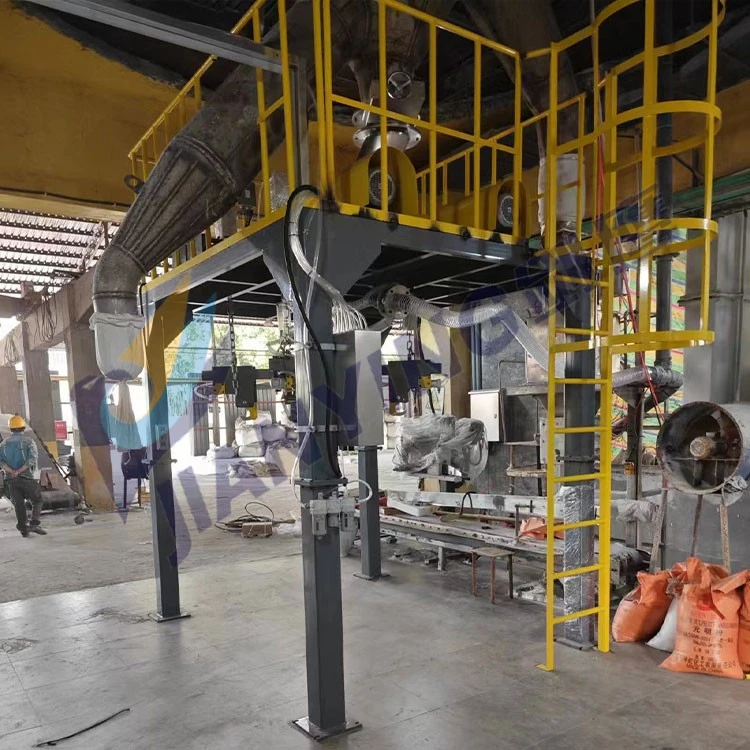

Wuxi Jianying's Bulk Bag Filling Machines have served over 1,000 customers, with equipment deployed across more than 2,000 production lines and a total capacity of 10 million tons. The customer repurchase rate reaches 65%, significantly higher than the industry average, demonstrating strong market recognition of product performance and service quality. The DCS-1000 series features imported high-precision weighing sensors with stable accuracy maintained at ±0.2%, along with built-in automatic peeling and zero-level tracking functions. It offers flexible feeding options-including screw-fed, gravity-fed, or vibration-fed systems-adapted to various material characteristics, and is compatible with standard 500–1000 kg PP woven bags paired with PE linings or laminated containers for automated powder filling, weighing, and complete process handling. Customization is also supported based on material properties and packaging requirements.
Technical Specifications
|
Model |
DCS-1000/1 |
DCS-1000/2 |
DCS-1000/3 |
DCS-1000/6 |
|||
|
Range |
500~1000 kg |
||||||
|
Speed |
1 0 ~ 2 0 Bag/Hour |
25 Bag/Hour |
10~ 2 0 Bag/Hour |
8 Bag/Hour |
|||
|
Accuracy |
±0.2% |
||||||
|
Power Source |
AC380/220/50Hz |
||||||
|
Air Pressure |
0.4~0.6 MPa |
||||||
|
Air Consumption |
0.3m³/min |
||||||
|
Bag |
PP woven material (PE or PE liner film lamination),four or two straps |
||||||
|
Feeding Method |
Spiral feeding |
Gravity type |
Spiral feeding |
vibration type |
|||
Feature And Application
By installing the Wuxi Jianying Bulk Bag Filling Machine, customers can achieve comprehensive value enhancements: Increased production efficiency – packaging speed up to 40%-60% faster than traditional equipment; Improved packaging accuracy – error control within ±0.2%; Reduced material loss by 15%-20%; Lowered labor costs – automated packaging reduces manual intervention and cuts per-line labor costs by over 60%; Stable product quality – enhanced packaging consistency raises product pass rate from approximately 92% to over 98.5%;
Environmental compliance – dust emission concentration controlled below 10 mg/m³, meeting national environmental and occupational health standards; A rapid response mechanism with 24-hour consultation and 48-hour on-site service is provided; The equipment comes with a 12-month warranty covering free replacement of non-human-induced components; Lifetime technical support and equipment upgrade services ensure continuous alignment with production needs.
