The Wuxi Jianying DCS-1000 series ton bag packaging machines are high-capacity automated quantitative packaging systems designed for various materials including powders, granules, and block materials. Capable of batch filling of 500–1000 kg per bag, these units can operate independently or be integrated with feeding and conveying systems to form automated packaging lines. The equipment offers optional feeding methods such as dual-screw (single-screw or vertical-screw), vibration feeding, and gravity feeding, complemented by core modules including dynamic weighing, negative-pressure dust removal, and intelligent electrical control. These features address industry challenges associated with traditional powder, granule, and block material packaging-such as significant dust generation, clogging due to material bridging, substantial weighing deviations, and high labor costs-and are suitable for bulk powder processing applications in sectors like chemicals, new energy, pesticides, fertilizers, and metallurgy. Custom solutions are available in multiple configurations, including standard models, anti-clogging variants, and high-speed mass-production versions.
Technical Specifications
|
Model |
DCS-1000/1 |
DCS-1000/2 |
DCS-1000/3 |
DCS-1000/6 |
|||
|
Range |
500~1000 kg |
||||||
|
Speed |
1 0 ~ 2 0 Bag/Hour |
25 Bag/Hour |
10~ 2 0 Bag/Hour |
8 Bag/Hour |
|||
|
Accuracy |
±0.2% |
||||||
|
Power Source |
AC380/220/50Hz |
||||||
|
Air Pressure |
0.4~0.6 MPa |
||||||
|
Air Consumption |
0.3m³/min |
||||||
|
Bag |
PP woven material (PE or PE liner film lamination),four or two straps |
||||||
|
Feeding Method |
Spiral feeding |
Gravity type |
Spiral feeding |
vibration type |
|||
Feature And Application
* The DCS-1000 series ton-bag packaging machine features anti-clogging and anti-bridging capabilities with stable feeding performance. Depending on material characteristics, it offers optional configurations including dual-screw variable-frequency feeding, gravity feeding, or vibration feeding, complemented by an arch-breaking mechanism to prevent powder clumping, flow interruption, and clogging. Its hopper design prevents adhesion, ensuring no cross-contamination during material replacement.
* High-precision quantification with minimal loss: The suspended weighing system combines high-precision sensors and dynamic drop compensation, ensuring stable and accurate weighing while significantly reducing material waste.

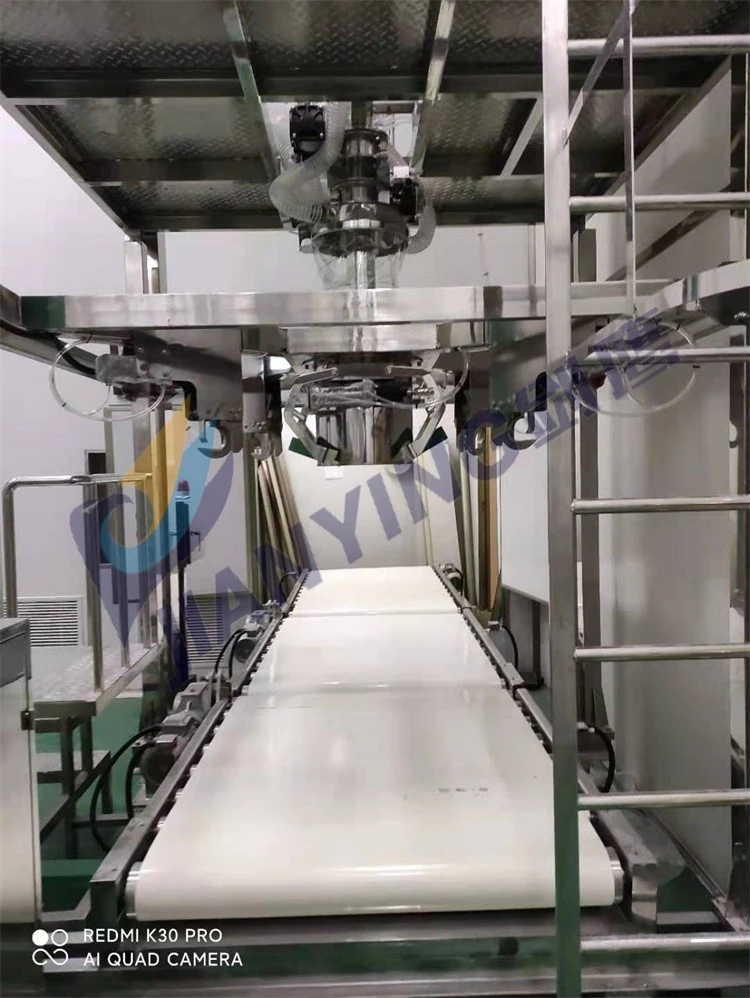

* Fully sealed and dust-free, compliant with environmental standards: featuring a bag-mouth sealing mechanism combined with a negative-pressure dust removal system to prevent dust leakage throughout the filling process, thereby improving the workshop working environment.
* Easy operation with minimal labor: Intelligent PLC touch control enables one-click parameter adjustment, automatic counting and production statistics, requiring only single-person assistance for bag hanging – significantly reducing labor costs.
High adaptability and customization: Supports rapid switching between bags of different specifications, offers customizable configurations such as explosion-proof and food-grade materials, and complies with production standards across multiple industries.
