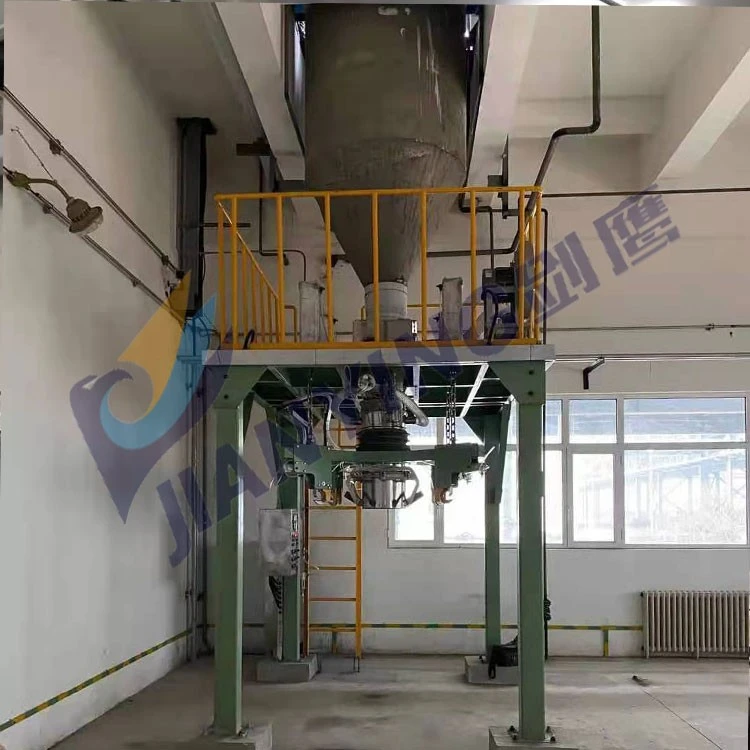

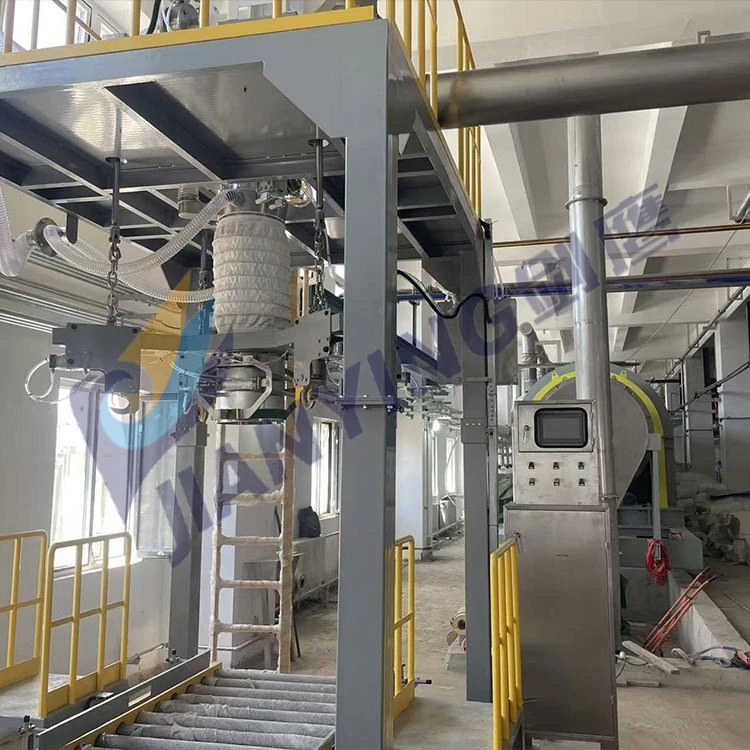

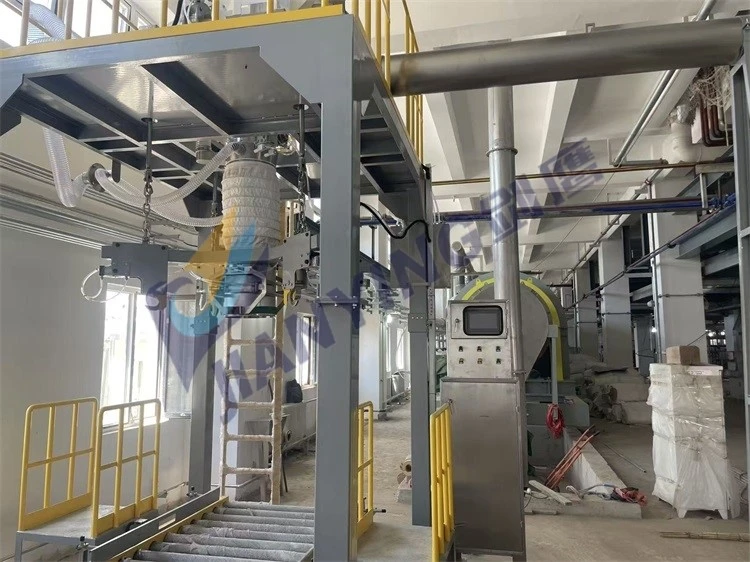

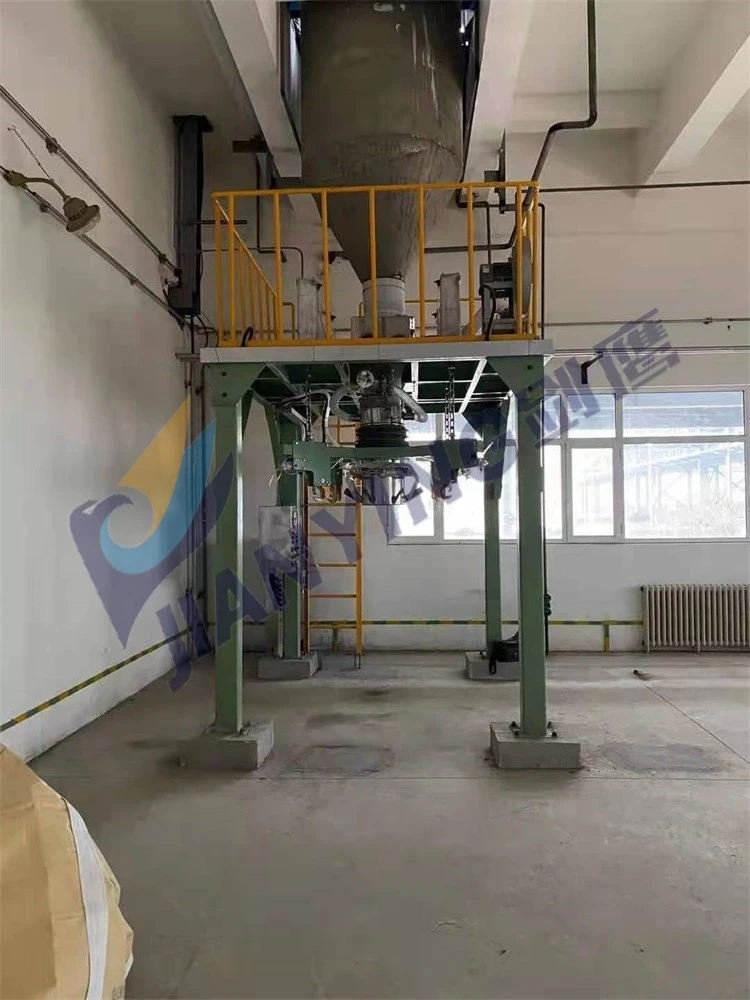

The Wuxi Jianying DCS-1000 series Big Bag Filler (models 1000/1, 1000-2, 1000-3, and 1000-6) are designed for standard container bags ranging from 500 to 1000 kg, compatible with conventional PP woven bags as well as bags with PE linings or lamination films. They provide a comprehensive solution for automatic filling and weighing of powder materials, making them the mainstream equipment for standardized packaging of bulk materials in the chemical, food, pesticide, and new energy industries. The machines feature various feeding configurations: spiral feeding systems include the 1000/1, 1000/1s vertical spirals, 1000/1d single spiral, 1000/3, 1000/3s vertical spirals, and 1000/3d single spiral models; gravity feeding is implemented using the DCS-1000-2 model, while vibration feeding utilizes the DCS-1000-6 model. These machines offer flexible operation options, capable of working independently or being integrated into fully automated packaging lines.
Technical Specifications
|
Model |
DCS-1000/1 |
DCS-1000/2 |
DCS-1000/3 |
DCS-1000/6 |
|||
|
Range |
500~1000 kg |
||||||
|
Speed |
1 0 ~ 2 0 Bag/Hour |
25 Bag/Hour |
10~ 2 0 Bag/Hour |
8 Bag/Hour |
|||
|
Accuracy |
±0.2% |
||||||
|
Power Source |
AC380/220/50Hz |
||||||
|
Air Pressure |
0.4~0.6 MPa |
||||||
|
Air Consumption |
0.3m³/min |
||||||
|
Bag |
PP woven material (PE or PE liner film lamination),four or two straps |
||||||
|
Feeding Method |
Spiral feeding |
Gravity type |
Spiral feeding |
vibration type |
|||
Feature And Application
The DCS-1000 series Sack Filling Machine features a thickened steel frame and a heavy-duty suspended weighing structure, offering excellent impact resistance and load-bearing stability. The core weighing and drive components are designed for a service life exceeding 100,000 hours, with an overall failure rate below 0.5%-significantly lower than the industry average. The pneumatic bag-clamping self-locking hook ensures secure suspension of tonnage bags, preventing leakage during filling. An optional lifting platform allows adaptation to bags of varying heights, reducing downward pulling forces and extending bag lifespan. The explosion-proof model incorporates a complete set of explosion-proof motors, control boxes, and wiring systems, making it suitable for workshops handling flammable or explosive chemical materials and compliant with safety regulations. Its modular design enables independent assembly and disassembly of functional units, facilitates easy replacement of wear parts, simplifies daily maintenance, and eliminates need for specialized large tools.
The system can be customized according to requirements regarding hopper capacity, overall machine height, conveying roller length, fully sealed explosion-proof design, constant-temperature anti-caking module, and automatic bag-unloading mechanism, ensuring compatibility with factory floor heights, material properties, and production line configurations. It offers 24/7 rapid response services including on-site installation and commissioning, operator training, regular equipment inspections, and remote online debugging guidance.
