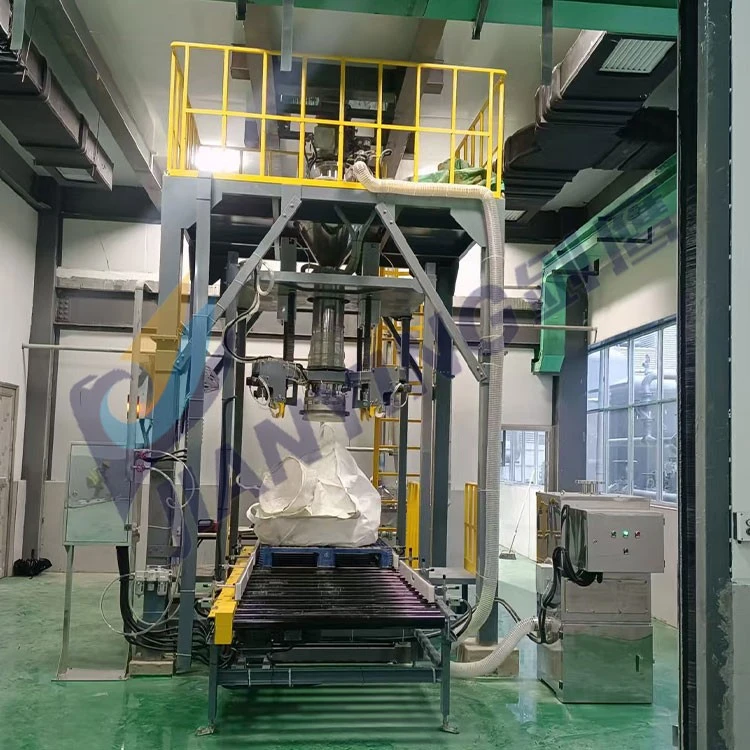

The Wuxi Jianying Bulk Bag Packing Machine is an automated intelligent system specifically designed for packaging high-volume materials. With years of expertise in industrial packaging, it accommodates various materials including powders, granules, and bulk solids, and is widely used in the chemical, new energy, metallurgy, and food industries. It meets enterprises' demands for standardized, large-scale, and high-precision packaging production while adapting to diverse workshop operating conditions.
The high-precision weighing sensing system forms the core configuration of the DCS-1000 Bulk Packing Machine, ensuring stable and accurate measurement data throughout the entire process. The equipment offers three feeding configurations-screw variable frequency, gravity direct drop, and AC vibration-which can be adapted to meet various material production requirements, with a weighing error of ≤±0.2%, complying with industrial raw material measurement standards. Model specifications: The 1000-1 model features a bottom-mounted weighing platform equipped with a bottom compaction device, primarily used for powder material packaging; the 1000-2 and 1000-3 models employ an upper-mounted weighing structure, designed respectively for granular and powdered material packaging applications.
Technical Specifications
|
Model |
DCS-1000/1 |
DCS-1000/2 |
DCS-1000/3 |
DCS-1000/6 |
|||
|
Range |
500~1000 kg |
||||||
|
Speed |
1 0 ~ 2 0 Bag/Hour |
25 Bag/Hour |
10 ~ 2 0Bag/Hour |
8 Bag/Hour |
|||
|
Accuracy |
±0.2% |
||||||
|
Power Source |
AC380/220/50Hz |
||||||
|
Air Pressure |
0.4~0.6 MPa |
||||||
|
Air Consumption |
0.3m³/min |
||||||
|
Bag |
PP woven material (PE or PE liner film lamination),four or two straps |
||||||
|
Feeding Method |
Spiral feeding |
Gravity type |
Spiral feeding |
vibration type |
|||
Feature And Application
* The Bulk Bag Packing Machine features precise weighing with minimal error: equipped with an intelligent CNC weighing system, it ensures accurate and stable measurement, keeping packaging errors within ±0.2%, completely eliminating material waste, ensuring optimal production efficiency for enterprises, and meeting high-precision packaging standards.
* Highly efficient automation with labor savings and reduced energy consumption: The system encompasses full-process functions including manual bag hanging, material feeding, manual sealing, and counting, enabling continuous operation without multiple personnel, significantly enhancing packaging capacity, effectively lowering labor costs, maintaining low equipment failure rates, and resulting in minimal long-term maintenance expenses.
* Sealed and dust-resistant with broad compatibility: Equipped with a specialized dust removal interface and sealed discharge structure, it effectively prevents dust leakage and eliminates material contamination, making it suitable for clean production workshops. The equipment features adjustable weight parameters to accommodate bags of varying specifications, enabling flexible adaptation to diverse material packaging requirements.
* Stable and durable, with intelligent control: The device features an industrial-grade thickened material for robust structure, enabling long-term adaptation to high-intensity continuous production. Equipped with a smart control system that supports network connectivity with central control equipment, it automatically calculates output volumes, monitors operational status in real time, and offers user-friendly operation and convenient maintenance.
* High operational adaptability: The equipment features built-in material compaction and lifting adjustment functions tailored to different material types and models, effectively addressing issues of material looseness or inadequate filling. It ensures compact and well-shaped packaged products, making it suitable for various complex production environments with exceptional versatility and practicality.
