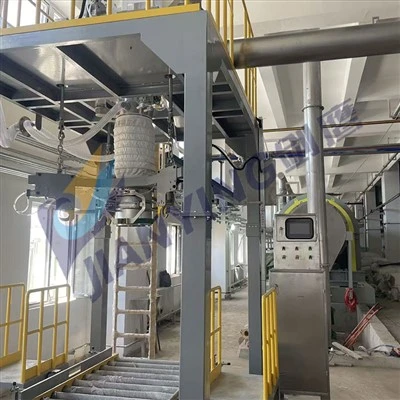

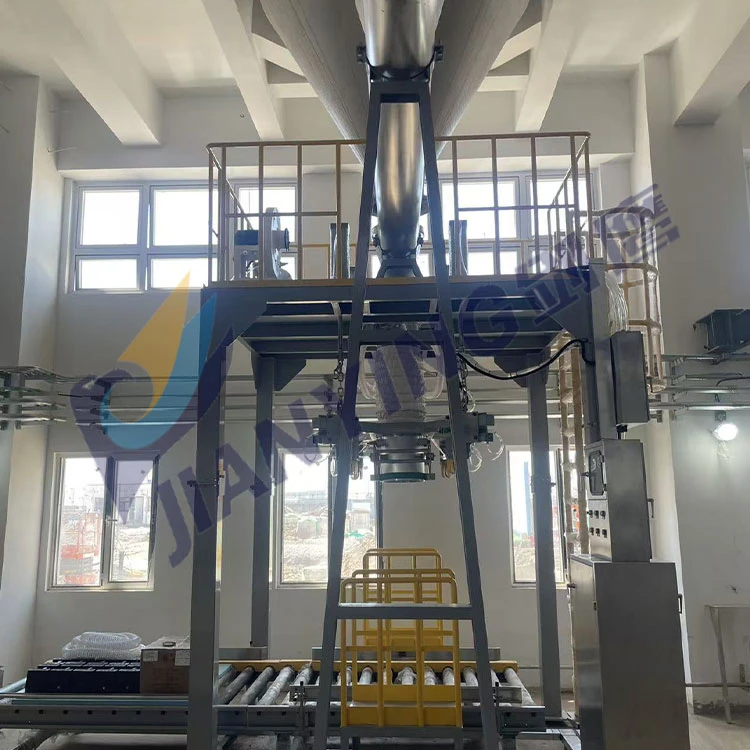

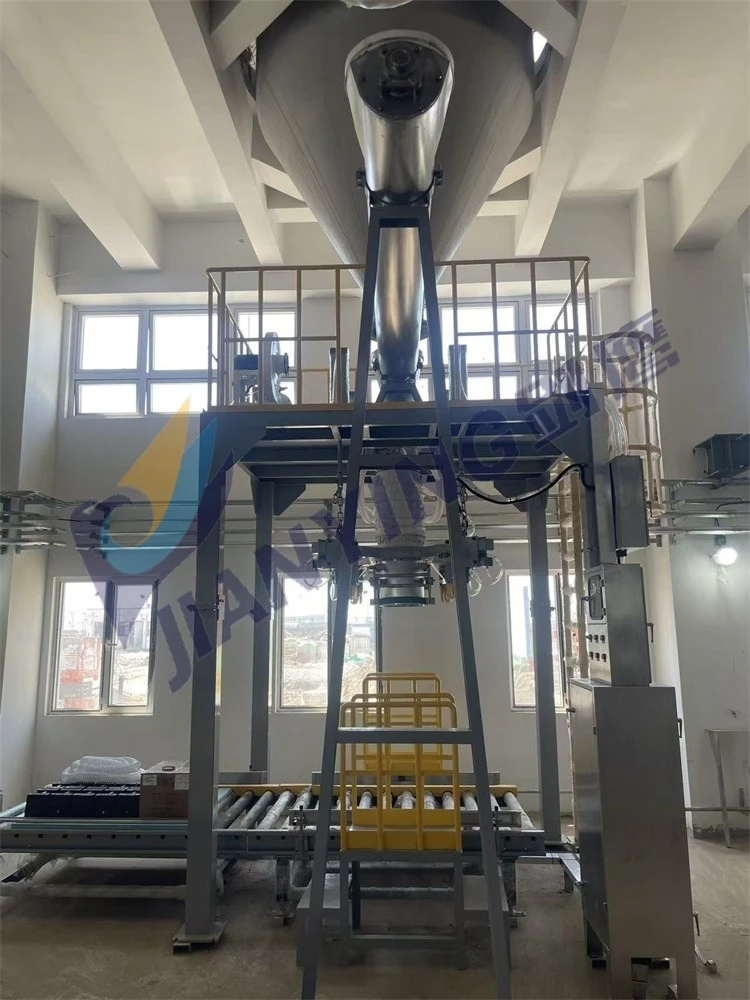

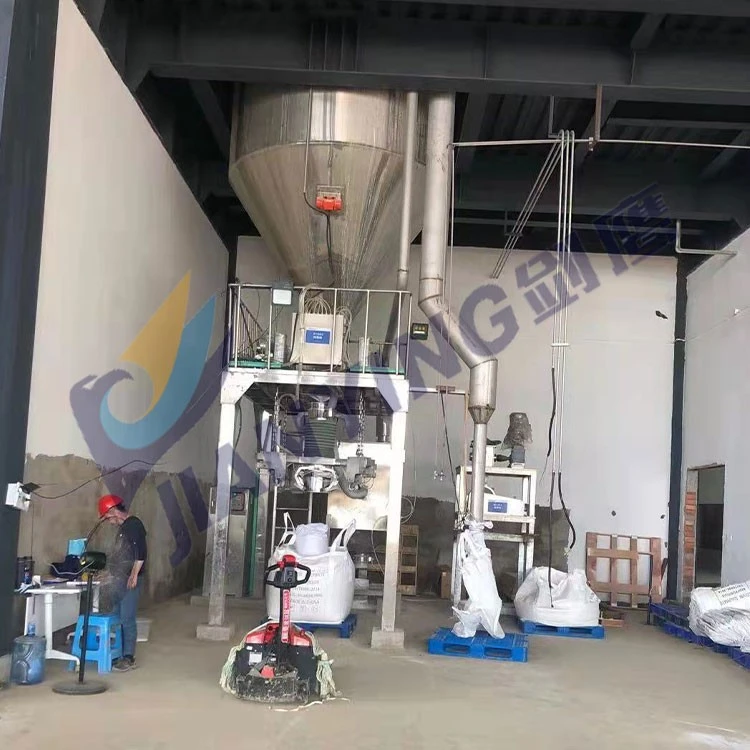

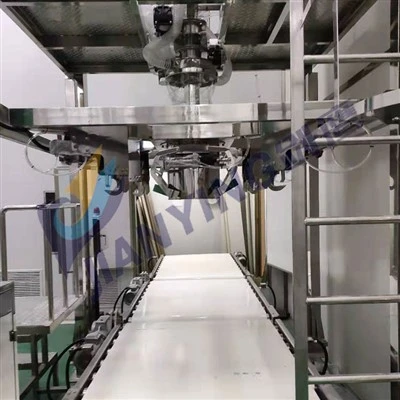

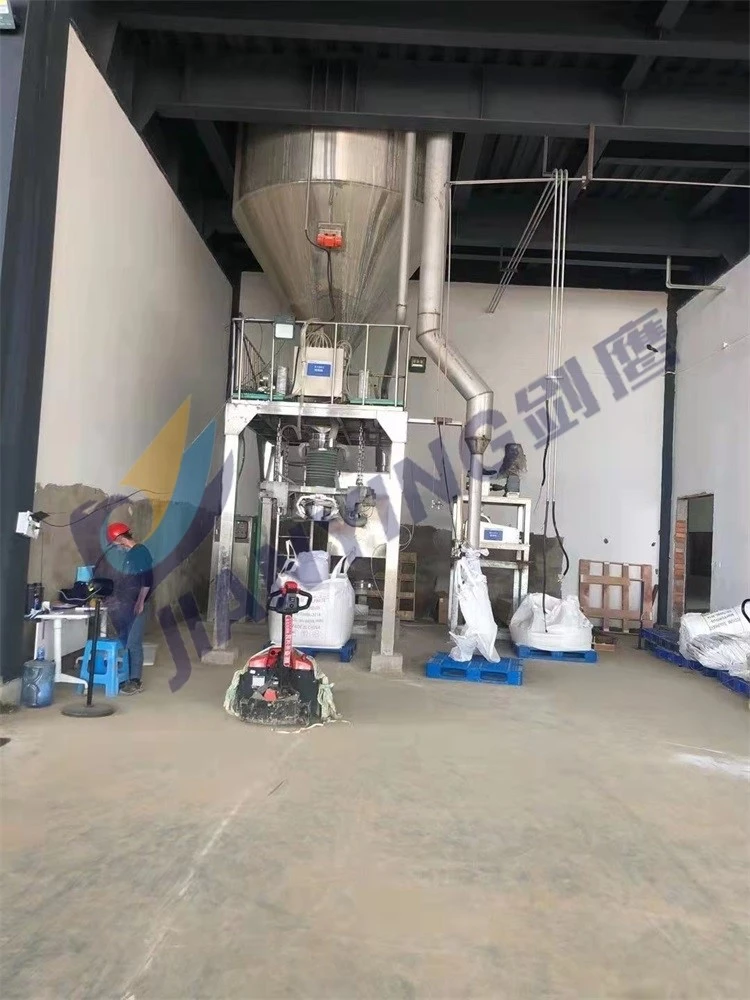

The Wuxi Jianying tonnage bag packaging machine is an automated equipment designed for packaging large bags weighing 500–1000 kg, widely used in heavy-material packaging applications across industries such as chemical, pharmaceutical, new energy, and metallurgy. The company currently offers the DCS-1000 series as its flagship model, providing customized solutions tailored to material properties, packaging specifications, and production requirements. The DCS-1000 represents Wuxi Jianying's classic solution for large-bag packaging of granular or powdered materials, featuring high weighing accuracy, user-friendly operation, and robust reliability. Basic configurations include a storage hopper (optional), gravity, vibration, or screw feeding mechanisms, a dust removal system, a computerized weighing control unit, a weighing platform, a steel frame platform, a large-bag suspension system, and a conveyor belt (optional), all customizable according to customer needs.
Technical Specifications
|
Model |
DCS-1000/1 |
DCS-1000/2 |
DCS-1000/3 |
DCS-1000/6 |
|||
|
Range |
500~1000 kg |
||||||
|
Speed |
1 0 ~ 2 0 Bag/Hour |
25 Bag/Hour |
10~ 2 0 Bag/Hour |
8 Bag/Hour |
|||
|
Accuracy |
±0.2% |
||||||
|
Power Source |
AC380/220/50Hz |
||||||
|
Air Pressure |
0.4~0.6 MPa |
||||||
|
Air Consumption |
0.3m³/min |
||||||
|
Bag |
PP woven material (PE or PE liner film lamination),four or two straps |
||||||
|
Feeding Method |
Spiral feeding |
Gravity type |
Spiral feeding |
vibration type |
|||
Feature And Application
* The DCS-1000 automatic quantitative ton-bag packaging machine is designed to meet the specialized demands for high precision and stability in industries such as new energy and chemical processing, utilizing high-precision sensors from Germany and the United States with an accuracy of ±0.2%. By adapting to various material feeding methods and packaging requirements, it ensures both efficient packaging speed and precise weighing performance. Users can select from gravity, vibration, or screw (single/double-screw/vertical-screw) feeding mechanisms to achieve required weighing accuracy.
* Intelligent Control System: Automatically executes the entire material packaging control process, integrating weight display, packaging sequencing, process interlocking, and fault alarms. It stores packaging weight control parameters and automatically records shift-specific cumulative output, total packages, overall production volume, and total package count. Equipped with automatic peeling, zero calibration, and differential correction functions, it adapts to various material characteristics.
* The device features a fully enclosed structure and negative-pressure suction design, equipped with an efficient dust removal system. During packaging, the inflation mechanism inflates and shapes the ton bags to minimize material bridging, while an optional dust collection system can simultaneously capture generated particulates, ensuring a clean production environment.
* The DCS/1000 ton-bag packaging machine features a pneumatic lifting system that effortlessly handles hanging, raising, and unbagging operations, significantly reducing operator strain. Equipped with safety safeguards-including emergency stop buttons, overload protection, and limit switches-the equipment ensures operator safety. Its modular design simplifies maintenance: replacement of wear-prone components takes under 30 minutes, and the maintenance interval extends to over six months.
